Modifying Dashboards

Resizing Charts in a Dashboard

You can increase or decrease the size of your charts in your dashboard.

To resize your chart to upscale or downscale, follow these steps.

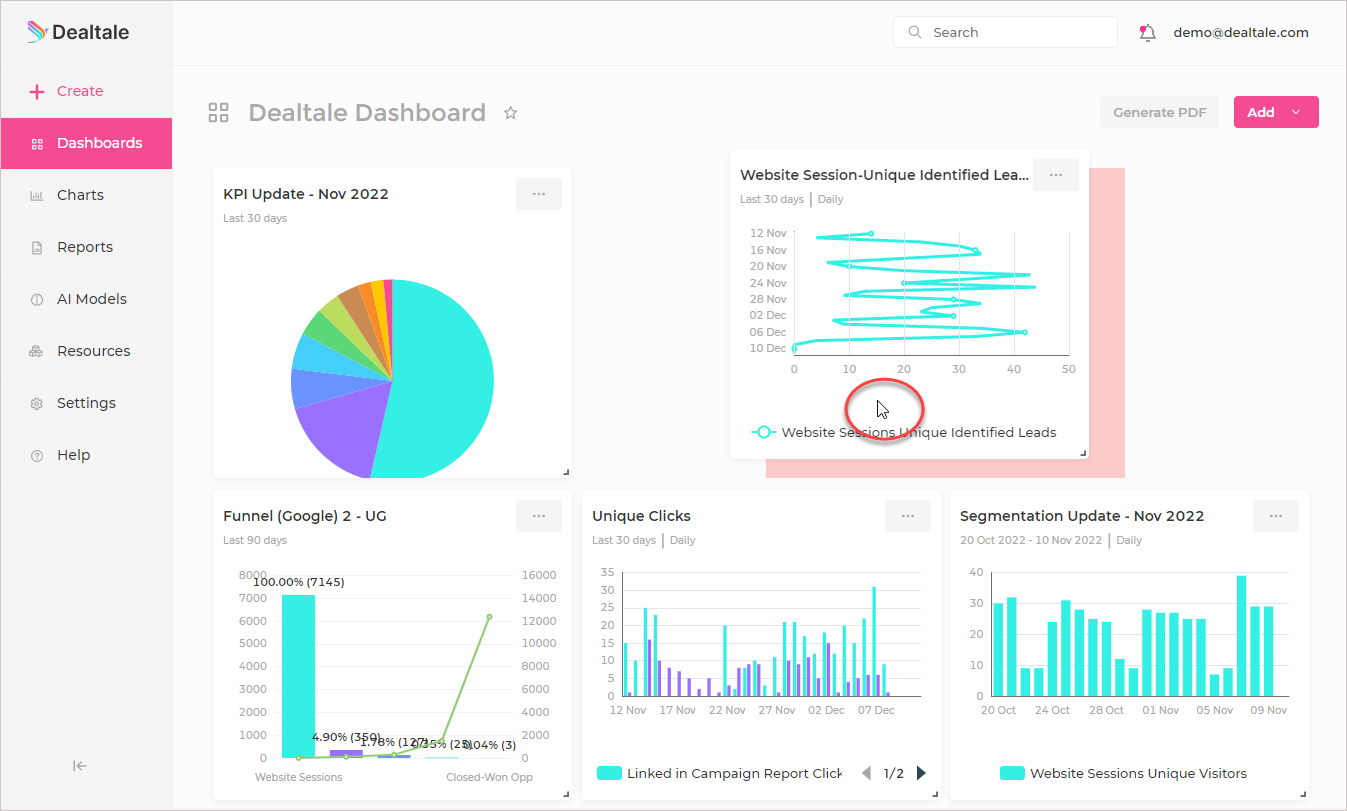

  1. Hover your cursor over the resize corner icon (looks like an arrow head) found at the lower right corner of the chart until the cursor changes to a double-headed arrow.
  1. Increase or decrease the size by clicking and dragging your mouse.

You see pink when the resize process is active.

Re-Arranging Charts in a Dashboard

You can move your charts around your dashboard.

To re-arrange charts in your dashboard, follow these steps.

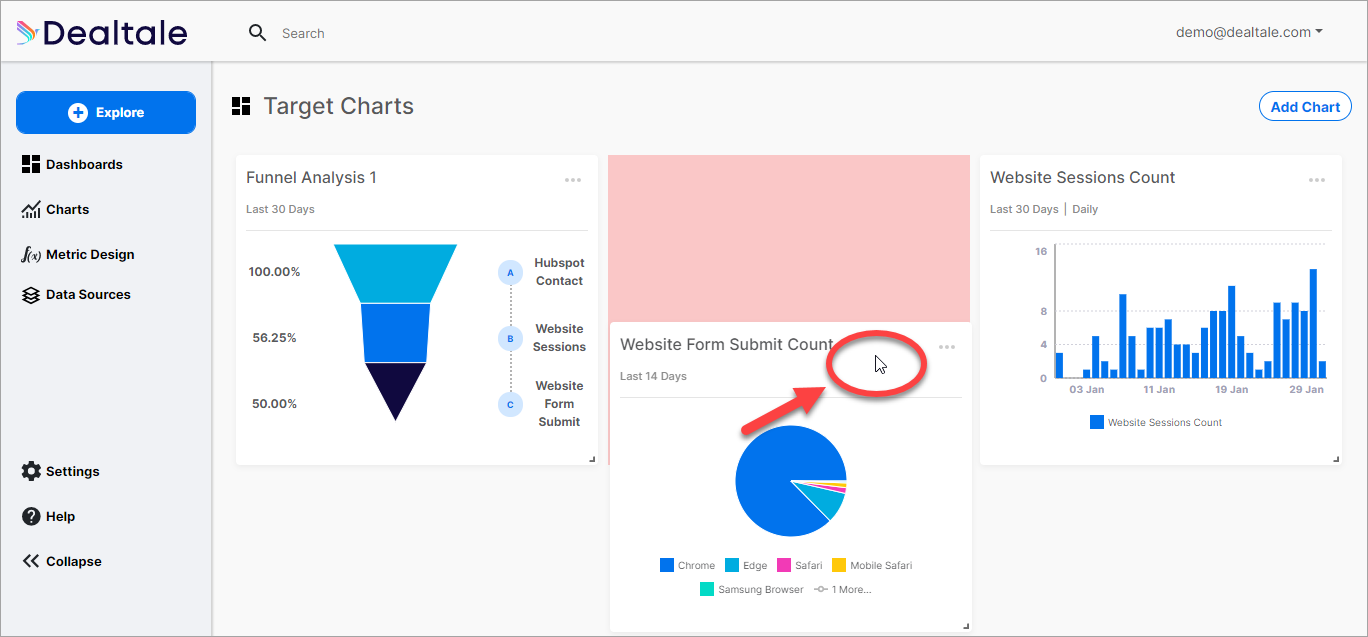

  1. Click your cursor anywhere inside the chart box and drag the chart to anywhere in the dashboard.

You see pink when the moving process is active.

Editing Chart Data from Your Dashboard

You can modify or update the existing data of a particular chart in your dashboard.

To edit chart data, follow these steps.

  1. Click on the ellipsis icon on the upper right corner of a chart box.
  2. Select Edit from the options.
  1. You are directed to the Analysis page, in this example, the Funnel Analysis page, where you can edit or update the metrics, events, or properties of this particular analysis.
  1. Editing or updating the properties behind the chart will then reflect another set of data on the chart.

Saving the New Chart to Your Dashboard

  1. After editing the chart data of a particular chart, you can either SAVE it to the current chart or SAVE AS a new chart.

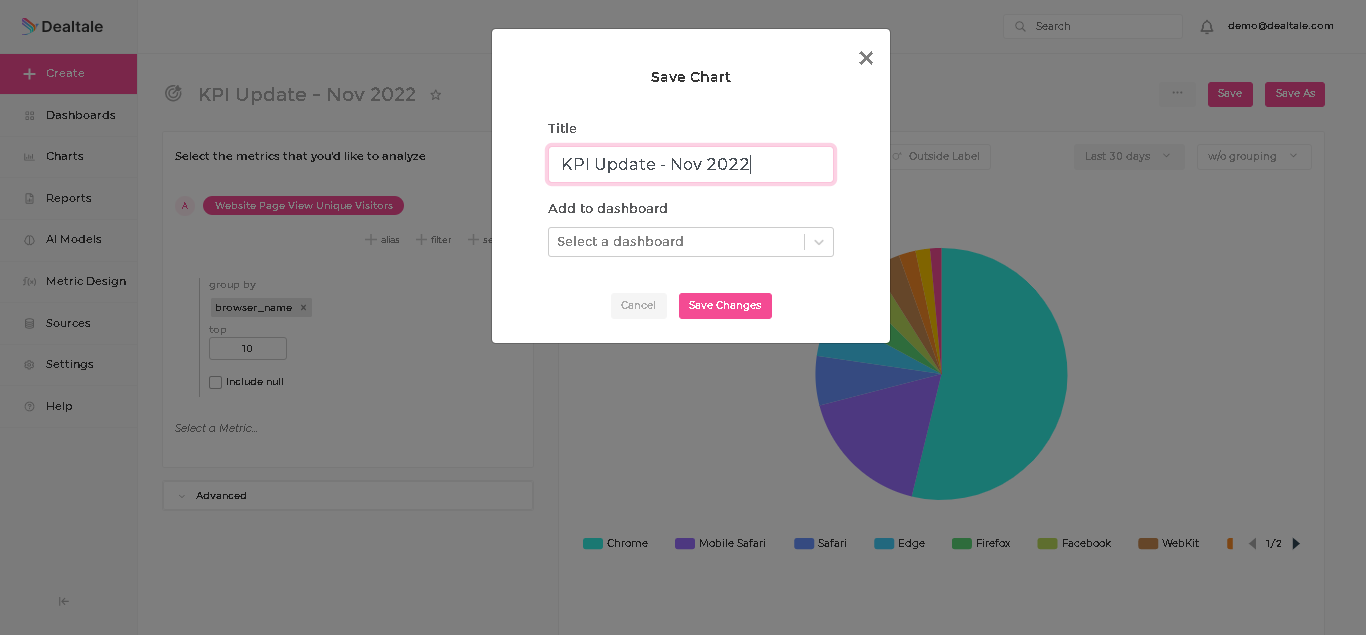

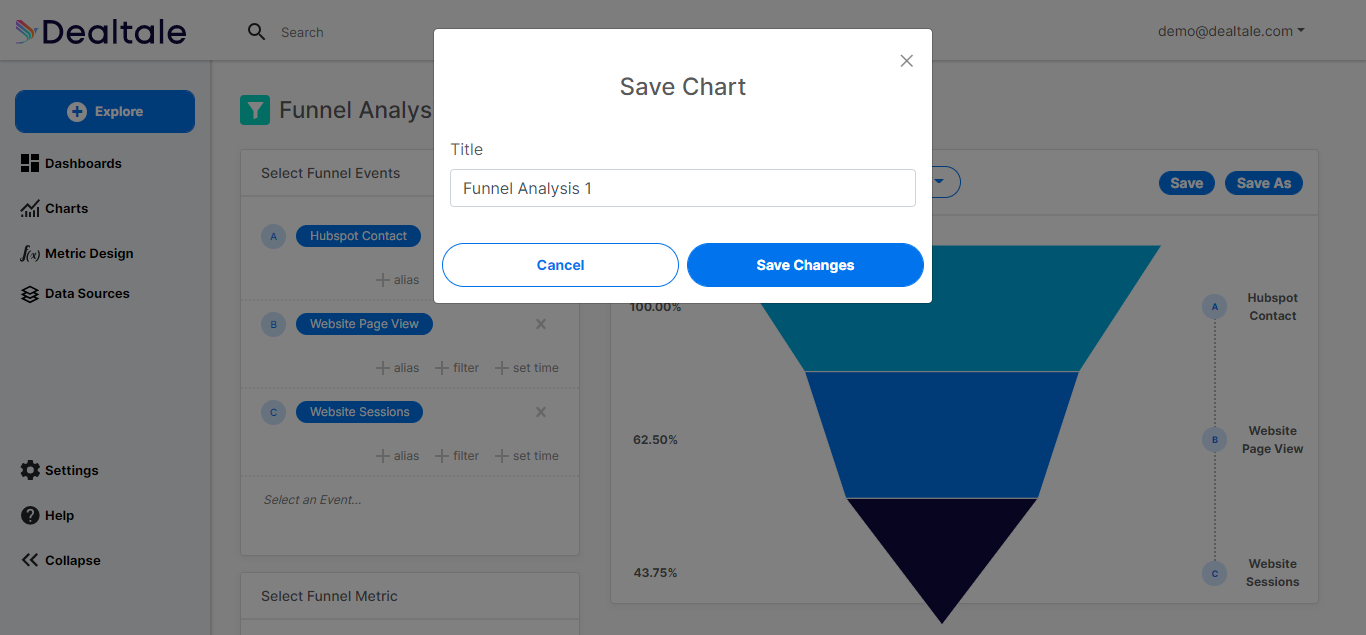

Clicking SAVE displays Save Chart dialog box where you save the changes made to the current chart you are working on. New and updated title and data will overwrite title and data of the current chart.

  1. Enter a new Chart Title, which will overwrite the old Chart Title, or retain the Chart Title in the Title field.
  2. Click Save Changes.

Clicking SAVE AS displays the Save Chart dialog box where you save the new or updated data in a new chart, thus entering a new Chart Title, which you can also save in the same or in a different dashboard.

  1. Enter a Chart Title in the field provided.
  2. Select a Dashboard from the drop-down options.
  3. After clicking either Save or Save Changes, a prompt displays, informing you that your chart has been successfully saved.

Changing the Dashboard Title

The Dashboard Title can be renamed. Refer to the Changing a Dashboard Title From the Dashboard section in Adding Dashboards for instructions.
